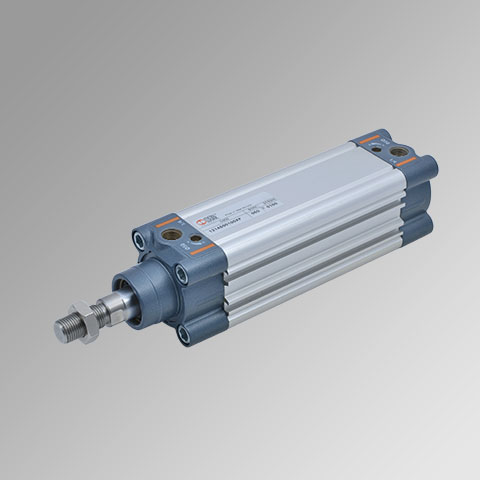

De dubbelwerkende ISO-cilinder Serie A van Metal Work is een profielcilinder die met perslucht zowel uitschuift als intrekt. Hij volgt de bevestigingsmaten van ISO 15552 en is daardoor uitwisselbaar met andere cilinders volgens die norm. U kiest uit boringen van Ø32, 40, 50, 63, 80, 100 en 125 mm, met een slag van 25 tot 1500 mm.
Toepassing
Een dubbelwerkende cilinder krijgt lucht aan beide zijden van de zuiger: aan de ene kant om uit te schuiven, aan de andere kant om terug te keren. Zo levert hij in beide richtingen kracht, wat nodig is bij duwen, trekken, klemmen, heffen en verplaatsen in machines en productielijnen. Omdat de bevestigingsmaten genormaliseerd zijn, vervangt u een versleten cilinder van een ander merk zonder het frame of de bevestiging aan te passen.
Uitvoeringen en keuze
- Boring (Ø): de binnendiameter van de cilinder, van 32 tot 125 mm. Een grotere boring geeft bij dezelfde druk meer kracht, maar verbruikt ook meer lucht.
- Slag: de afstand die de zuigerstang aflegt, van 25 tot 1500 mm. Kies de slag die de beweging van uw toepassing dekt.
- ISO 15552: vergelijk bij vervanging de bevestigingsmaten en de boring van de bestaande cilinder.
- Voorbeeld: 121AA21500ZP is Ø125 met slag 1500.
Combineer met
Bevestigingen en stangkoppen vindt u bij de cilindertoebehoren; de andere reeksen staan bij de ISO-cilinders.
Levertijd: doorgaans 2-4 werkdagen bij voldoende voorraad (excl. maatwerk).
Metal Work-artikelcodes
Zoekt u op de artikelcode van Metal Work? Dit zijn de uitvoeringen van dit product in onze webshop.
| Uitvoering | Artikelcode |
|---|---|
| 125 mm / 1500 mm | 121AA21500ZP |
| 125 mm / 1250 mm | 121AA21250ZP |
| 125 mm / 1000 mm | 121AA21000ZP |
| 125 mm / 950 mm | 121AA20950ZP |
| 125 mm / 900 mm | 121AA20900ZP |
| 125 mm / 850 mm | 121AA20850ZP |
| 125 mm / 800 mm | 121AA20800ZP |
| 125 mm / 750 mm | 121AA20750ZP |
| 125 mm / 700 mm | 121AA20700ZP |
| 125 mm / 650 mm | 121AA20650ZP |
| 125 mm / 600 mm | 121AA20600ZP |
| 125 mm / 550 mm | 121AA20550ZP |
| 125 mm / 500 mm | 121AA20500ZP |
| 125 mm / 450 mm | 121AA20450ZP |
| 125 mm / 400 mm | 121AA20400ZP |
| 125 mm / 350 mm | 121AA20350ZP |
| 125 mm / 300 mm | 121AA20300ZP |
| 125 mm / 250 mm | 121AA20250ZP |
| 125 mm / 200 mm | 121AA20200ZP |
| 125 mm / 160 mm | 121AA20160ZP |
| 125 mm / 150 mm | 121AA20150ZP |
| 125 mm / 125 mm | 121AA20125ZP |
| 125 mm / 100 mm | 121AA20100ZP |
| 125 mm / 80 mm | 121AA20080ZP |
| 125 mm / 75 mm | 121AA20075ZP |
| 125 mm / 50 mm | 121AA20050ZP |
| 125 mm / 25 mm | 121AA20025ZP |
| 100 mm / 1500 mm | 121AA11500ZP |
| 100 mm / 1250 mm | 121AA11250ZP |
| 100 mm / 1000 mm | 121AA11000ZP |
| 100 mm / 950 mm | 121AA10950ZP |
| 100 mm / 900 mm | 121AA10900ZP |
| 100 mm / 850 mm | 121AA10850ZP |
| 100 mm / 800 mm | 121AA10800ZP |
| 100 mm / 750 mm | 121AA10750ZP |
| 100 mm / 700 mm | 121AA10700ZP |
| 100 mm / 650 mm | 121AA10650ZP |
| 100 mm / 600 mm | 121AA10600ZP |
| 100 mm / 550 mm | 121AA10550ZP |
| 100 mm / 500 mm | 121AA10500ZP |
| 100 mm / 450 mm | 121AA10450ZP |
| 100 mm / 400 mm | 121AA10400ZP |
| 100 mm / 350 mm | 121AA10350ZP |
| 100 mm / 300 mm | 121AA10300ZP |
| 100 mm / 250 mm | 121AA10250ZP |
| 100 mm / 200 mm | 121AA10200ZP |
| 100 mm / 160 mm | 121AA10160ZP |
| 100 mm / 150 mm | 121AA10150ZP |
| 100 mm / 125 mm | 121AA10125ZP |
| 100 mm / 100 mm | 121AA10100ZP |
| 100 mm / 80 mm | 121AA10080ZP |
| 100 mm / 75 mm | 121AA10075ZP |
| 100 mm / 50 mm | 121AA10050ZP |
| 100 mm / 25 mm | 121AA10025ZP |
| 80 mm / 1500 mm | 121A801500ZP |
| 80 mm / 1250 mm | 121A801250ZP |
| 80 mm / 1000 mm | 121A801000ZP |
| 80 mm / 950 mm | 121A800950ZP |
| 80 mm / 900 mm | 121A800900ZP |
| 80 mm / 850 mm | 121A800850ZP |
| 80 mm / 800 mm | 121A800800ZP |
| 80 mm / 750 mm | 121A800750ZP |
| 80 mm / 700 mm | 121A800700ZP |
| 80 mm / 650 mm | 121A800650ZP |
| 80 mm / 600 mm | 121A800600ZP |
| 80 mm / 550 mm | 121A800550ZP |
| 80 mm / 500 mm | 121A800500ZP |
| 80 mm / 450 mm | 121A800450ZP |
| 80 mm / 400 mm | 121A800400ZP |
| 80 mm / 350 mm | 121A800350ZP |
| 80 mm / 300 mm | 121A800300ZP |
| 80 mm / 250 mm | 121A800250ZP |
| 80 mm / 200 mm | 121A800200ZP |
| 80 mm / 160 mm | 121A800160ZP |
| 80 mm / 150 mm | 121A800150ZP |
| 80 mm / 125 mm | 121A800125ZP |
| 80 mm / 100 mm | 121A800100ZP |
| 80 mm / 80 mm | 121A800080ZP |
| 80 mm / 75 mm | 121A800075ZP |
| 80 mm / 50 mm | 121A800050ZP |
| 80 mm / 25 mm | 121A800025ZP |
| 63 mm / 1500 mm | 121A631500ZP |
| 63 mm / 1250 mm | 121A631250ZP |
| 63 mm / 1000 mm | 121A631000ZP |
| 63 mm / 950 mm | 121A630950XP |
| 63 mm / 900 mm | 121A630900XP |
| 63 mm / 850 mm | 121A630850XP |
| 63 mm / 800 mm | 121A630800XP |
| 63 mm / 750 mm | 121A630750XP |
| 63 mm / 700 mm | 121A630700XP |
| 63 mm / 650 mm | 121A630650XP |
| 63 mm / 600 mm | 121A630600XP |
| 63 mm / 550 mm | 121A630550XP |
| 63 mm / 500 mm | 121A630500XP |
| 63 mm / 450 mm | 121A630450XP |
| 63 mm / 400 mm | 121A630400XP |
| 63 mm / 350 mm | 121A630350XP |
| 63 mm / 300 mm | 121A630300XP |
| 63 mm / 250 mm | 121A630250XP |
| 63 mm / 200 mm | 121A630200XP |
| 63 mm / 160 mm | 121A630160XP |
| 63 mm / 150 mm | 121A630150XP |
| 63 mm / 125 mm | 121A630125XP |
| 63 mm / 100 mm | 121A630100XP |
| 63 mm / 80 mm | 121A630080XP |
| 63 mm / 75 mm | 121A630075XP |
| 63 mm / 50 mm | 121A630050XP |
| 63 mm / 25 mm | 121A630025XP |
| 50 mm / 1500 mm | 121A501500ZP |
| 50 mm / 1250 mm | 121A501250ZP |
| 50 mm / 1000 mm | 121A501000ZP |
| 50 mm / 950 mm | 121A500950XP |
| 50 mm / 900 mm | 121A500900XP |
| 50 mm / 850 mm | 121A500850XP |
| 50 mm / 800 mm | 121A500800XP |
| 50 mm / 750 mm | 121A500750XP |
| 50 mm / 700 mm | 121A500700XP |
| 50 mm / 650 mm | 121A500650XP |
| 50 mm / 600 mm | 121A500600XP |
| 50 mm / 550 mm | 121A500550XP |
| 50 mm / 500 mm | 121A500500XP |
| 50 mm / 450 mm | 121A500450XP |
| 50 mm / 400 mm | 121A500400XP |
| 50 mm / 350 mm | 121A500350XP |
| 50 mm / 300 mm | 121A500300XP |
| 50 mm / 250 mm | 121A500250XP |
| 50 mm / 200 mm | 121A500200XP |
| 50 mm / 160 mm | 121A500160XP |
| 50 mm / 150 mm | 121A500150XP |
| 50 mm / 125 mm | 121A500125XP |
| 50 mm / 100 mm | 121A500100XP |
| 50 mm / 80 mm | 121A500080XP |
| 50 mm / 75 mm | 121A500075XP |
| 50 mm / 50 mm | 121A500050XP |
| 50 mm / 25 mm | 121A500025XP |
| 40 mm / 1500 mm | 121A401500ZP |
| 40 mm / 1250 mm | 121A401250ZP |
| 40 mm / 1000 mm | 121A401000ZP |
| 40 mm / 950 mm | 121A400950XP |
| 40 mm / 900 mm | 121A400900XP |
| 40 mm / 850 mm | 121A400850XP |
| 40 mm / 800 mm | 121A400800XP |
| 40 mm / 750 mm | 121A400750XP |
| 40 mm / 700 mm | 121A400700XP |
| 40 mm / 650 mm | 121A400650XP |
| 40 mm / 600 mm | 121A400600XP |
| 40 mm / 550 mm | 121A400550XP |
| 40 mm / 500 mm | 121A400500XP |
| 40 mm / 450 mm | 121A400450XP |
| 40 mm / 400 mm | 121A400400XP |
| 40 mm / 350 mm | 121A400350XP |
| 40 mm / 300 mm | 121A400300XP |
| 40 mm / 250 mm | 121A400250XP |
| 40 mm / 200 mm | 121A400200XP |
| 40 mm / 160 mm | 121A400160XP |
| 40 mm / 150 mm | 121A400150XP |
| 40 mm / 125 mm | 121A400125XP |
| 40 mm / 100 mm | 121A400100XP |
| 40 mm / 80 mm | 121A400080XP |
| 40 mm / 75 mm | 121A400075XP |
| 40 mm / 50 mm | 121A400050XP |
| 40 mm / 25 mm | 121A400025XP |
| 32 mm / 1500 mm | 121A321500ZP |
| 32 mm / 1250 mm | 121A321250ZP |
| 32 mm / 1000 mm | 121A321000ZP |
| 32 mm / 950 mm | 121A320950XP |
| 32 mm / 900 mm | 121A320900XP |
| 32 mm / 850 mm | 121A320850XP |
| 32 mm / 800 mm | 121A320800XP |
| 32 mm / 750 mm | 121A320750XP |
| 32 mm / 700 mm | 121A320700XP |
| 32 mm / 650 mm | 121A320650XP |
| 32 mm / 600 mm | 121A320600XP |
| 32 mm / 550 mm | 121A320550XP |
| 32 mm / 500 mm | 121A320500XP |
| 32 mm / 450 mm | 121A320450XP |
| 32 mm / 400 mm | 121A320400XP |
| 32 mm / 350 mm | 121A320350XP |
| 32 mm / 300 mm | 121A320300XP |
| 32 mm / 250 mm | 121A320250XP |
| 32 mm / 200 mm | 121A320200XP |
| 32 mm / 160 mm | 121A320160XP |
| 32 mm / 150 mm | 121A320150XP |
| 32 mm / 125 mm | 121A320125XP |
| 32 mm / 100 mm | 121A320100XP |
| 32 mm / 80 mm | 121A320080XP |
| 32 mm / 75 mm | 121A320075XP |
| 32 mm / 50 mm | 121A320050XP |
| 32 mm / 25 mm | 121A320025XP |
